| Bonjour à tous
Quelqu un pourrait il me dire à quoi correspondent chaque fils des fiches branchant le commodo
Merci | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
phil88 A fond intégral
![A fond intégral A fond intégral](https://2img.net/i/itest/ranks/default/default6.gif)
![phil88](https://2img.net/u/3415/11/58/01/avatars/2238-25.jpg)
Nombre de messages : 749 Age : 59 Localisation : vittel 88 Ma voiture : simca 1000 sr 1976 et simca 1000 spéciale 1975 Date d'inscription : 31/05/2014
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mar 21 Avr 2020 - 18:47 | |
| Je parle du branchement du commodo sur le reste du faisceau si je me trompe pas 6 fils | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
MIKE 50 Mr Pan-Bagnat huile d'olive jaune sirius
![MIKE 50](https://2img.net/u/3415/11/58/01/avatars/1075-13.jpg)
Nombre de messages : 8652 Age : 74 Localisation : NORMAND / MARTEGAL Ma voiture : RALLYE 1 1977- RALLYE 1 1978 KIT SRT Date d'inscription : 17/12/2010
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mar 21 Avr 2020 - 21:24 | |
| Les trois fils indépendants c'est "VEILLEUSE CODE et PHARE"...Ils ont les repères couleur idem circuit faisceau La broche à raccordée sur le faisceau ![Faisceau commodo Commod11](https://i.servimg.com/u/f33/16/00/23/12/commod11.jpg) | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
phil88 A fond intégral
![A fond intégral A fond intégral](https://2img.net/i/itest/ranks/default/default6.gif)
![phil88](https://2img.net/u/3415/11/58/01/avatars/2238-25.jpg)
Nombre de messages : 749 Age : 59 Localisation : vittel 88 Ma voiture : simca 1000 sr 1976 et simca 1000 spéciale 1975 Date d'inscription : 31/05/2014
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mer 22 Avr 2020 - 6:46 | |
| Merci Jean Pierre et chaque fil dans la prise si tu as ca
Merci | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
rallyegeg A fond intégral
![A fond intégral A fond intégral](https://2img.net/i/itest/ranks/default/default6.gif)
![rallyegeg](https://2img.net/u/3415/11/58/01/avatars/1341-8.jpg)
Nombre de messages : 4213 Age : 75 Localisation : Jura Club SRT DIJON Ma voiture : Simca 1000 1966/R2 .1973/R3.1978 Date d'inscription : 14/07/2011
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mer 22 Avr 2020 - 13:19 | |
| Pas assez d'infos pour t'aider.Ton faisceau est issu de quelle auto,ton commodo est de quelle auto.Je joint le schema d'un faisceau de 1000 de 1975 ,sur celui ci ,deux connecteurs ,auquel j'ai adapté des instruments de 1000 R2 pour refaire un tableau de bord a ma facon genre R2.Je suis electricien ,donc pas de probleme.Le bea ba c'est d'avoir un multimetre ,la rta lire le schema et sonder chaque fils. sI CELA PEU AIDER; ![Faisceau commodo Racc_t11](https://i.servimg.com/u/f71/19/00/47/65/racc_t11.jpg) ![Faisceau commodo 4610](https://i.servimg.com/u/f71/19/00/47/65/4610.jpg) | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
phil88 A fond intégral
![A fond intégral A fond intégral](https://2img.net/i/itest/ranks/default/default6.gif)
![phil88](https://2img.net/u/3415/11/58/01/avatars/2238-25.jpg)
Nombre de messages : 749 Age : 59 Localisation : vittel 88 Ma voiture : simca 1000 sr 1976 et simca 1000 spéciale 1975 Date d'inscription : 31/05/2014
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mer 22 Avr 2020 - 14:50 | |
| Merci pour vos réponses mais c est les six fils qui vont au commodo pour lesquels je voudrais être renseigne
J ai tout le reste
Merci | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
pierre25190 A fond intégral
![A fond intégral A fond intégral](https://2img.net/i/itest/ranks/default/default6.gif)
![pierre25190](https://2img.net/u/3415/11/58/01/avatars/627-16.jpg)
Nombre de messages : 916 Age : 34 Localisation : 25 Ma voiture : rallye 2 1973 Date d'inscription : 05/01/2010
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mer 22 Avr 2020 - 21:09 | |

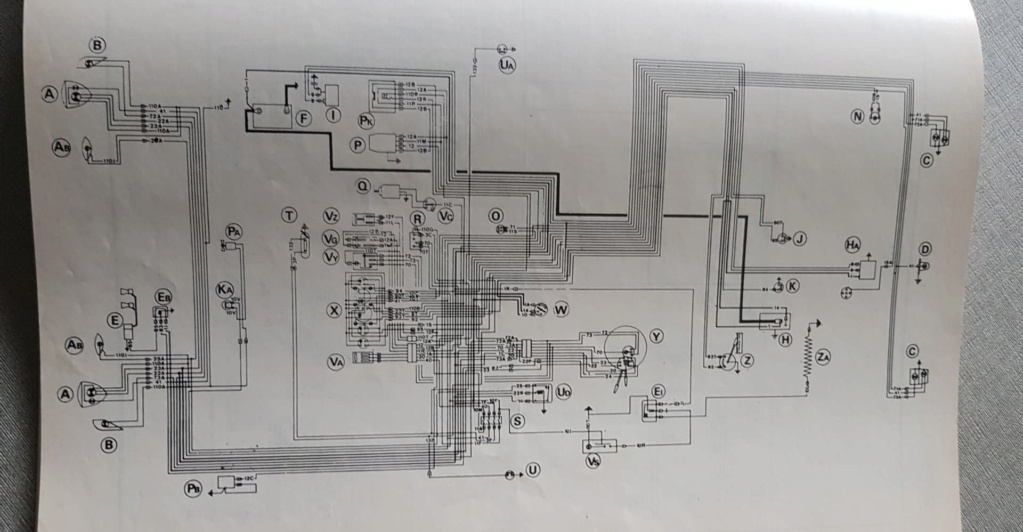

| faisceau 75 à 77 ![Faisceau commodo 48408413](https://i.servimg.com/u/f78/17/13/69/29/48408413.jpg) le commodo symbole Y couleurs des fils et numéros ![Faisceau commodo 48902211](https://i.servimg.com/u/f78/17/13/69/29/48902211.jpg) | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
MIKE 50 Mr Pan-Bagnat huile d'olive jaune sirius
![MIKE 50](https://2img.net/u/3415/11/58/01/avatars/1075-13.jpg)
Nombre de messages : 8652 Age : 74 Localisation : NORMAND / MARTEGAL Ma voiture : RALLYE 1 1977- RALLYE 1 1978 KIT SRT Date d'inscription : 17/12/2010
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mer 22 Avr 2020 - 22:43 | |
| Ici la broche ouverte (Fils cosses plates) Les 3 BLANC avec bagues de différentes couleurs c'est l'inter WARNING..........Les autres Le ROUGE +.....Le BLEU bague ROUGE ? et le BLEU ? ![Faisceau commodo Commod12](https://i.servimg.com/u/f33/16/00/23/12/commod12.jpg) | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
denisvroum A fond intégral
![A fond intégral A fond intégral](https://2img.net/i/itest/ranks/default/default6.gif)
![denisvroum](https://2img.net/u/3415/11/58/01/avatars/2422-14.jpg)
Nombre de messages : 555 Age : 72 Localisation : Charente Maritime Ma voiture : R2 77, R2 76, Murena 2.2 Date d'inscription : 25/02/2015
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mar 28 Avr 2020 - 17:43 | |
| bonjour à tous, un petit schéma pour faire avancer le shmilblic: A1000calement ![Faisceau commodo Commod10](https://i.servimg.com/u/f35/19/48/79/99/commod10.jpg) | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
phil88 A fond intégral
![A fond intégral A fond intégral](https://2img.net/i/itest/ranks/default/default6.gif)
![phil88](https://2img.net/u/3415/11/58/01/avatars/2238-25.jpg)
Nombre de messages : 749 Age : 59 Localisation : vittel 88 Ma voiture : simca 1000 sr 1976 et simca 1000 spéciale 1975 Date d'inscription : 31/05/2014
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mar 28 Avr 2020 - 17:47 | |
| | |
|
![Aller en bas](https://2img.net/i/empty.gif) | |
mangalor A fond intégral
![A fond intégral A fond intégral](https://2img.net/i/itest/ranks/default/default6.gif)
![mangalor](https://2img.net/u/3415/11/58/01/avatars/3074-85.jpg)
Nombre de messages : 988 Age : 53 Localisation : Perpignan Ma voiture : Simca R2 1973 G2 Date d'inscription : 18/06/2019
![Faisceau commodo Empty](https://2img.net/i/empty.gif) | Sujet: Re: Faisceau commodo Mar 28 Avr 2020 - 18:55 | |
| Je rebondis sur la question, pour savoir si quelqu'un a pu trouvé les connecteurs en eux meme, les miens sont cuit par l'age et le soleil de la méditerranée, ils sont pas en grande santé | |
|
